USB Type-C 1.2 and PD 3.0 compliant
USB-IF Certified. TID: 1000187, XID: 0005397
Support SOP’ communication
Integrated transceiver (BMC PHY)
Support both structured VDM version 1.0 and 2.0
High integration
Embedded both side Ra resistors
Embedded both side VCONN diodes
Embedded MTP
Small package and easy manufacturing:
DFN-6L 2 mm x 2 mm x 0.75 mm, 0.65 mm pitch
Support multiple times programming or fuse lock
Compatible with third party programming tools
Support 3.0 V ~ 5.5 V operation on VCONN1 and VCONN2 pins
Custom structured VDM writing through CC pin
Slew rate control for BMC signal to reduce EMI
Low power consumption -<7.5 mA
±8 kV HBM ESD on CC, VCONN1 and VCONN2 pins
- HUSB331 Expand all
-
Product Descriptions
HUSB331 is a USB Type-C eMarker for Cable ID applications. It is compliant with USB Type-C Specification Revision 1.2 and USB Power Delivery Specification Revision 2.0 and 3.0.Powered from VCONN1 or VCONN2, HUSB331 can determine to act as SOP’. The built-in MTP can be programmed through CC line or I2C bus so that it will be flexible for in-system programming. The HUSB331 operates over a wide supply range of 3.0 V to 5.5 V. It is available in DFN-6L package. It is rated over the -40°C to +85°C temperature range.
-

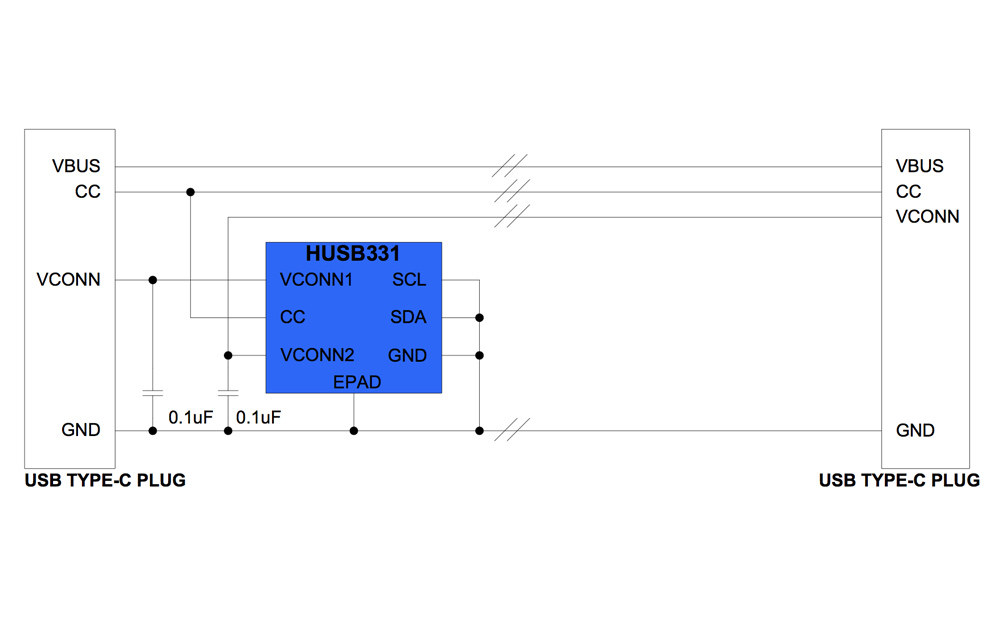

Typical Application Circuit
-
Sample and Order
Order Model Package Temperature Range Shipping HUSB331DN6 DFN2×2-6L -40°C - 85°C Tape & Reel, 4k
Apply Now -
Product Features
-
Technical Documents
-
Typical Applications

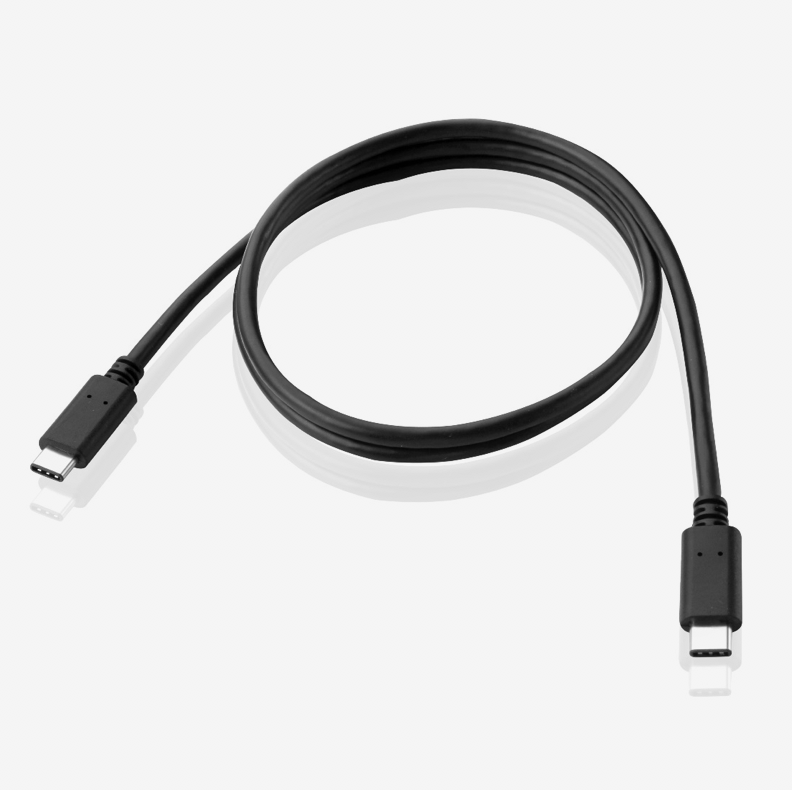

USB Type-C cable
-
Evaluation Board Kit
HUSB331 demo board: EVB_HUSB331DN6
