Provide highly reliable PD DRP Controller products
The USB PD DRP Controller launched by Hynetek includes a PD PHY chip dedicated to TCPC (Type-C Port Controller) and a full-featured PD DRP chip. The PD PHY chip can support PD3.0 extended commands and PPS commands, and has multiple advantages such as high withstand voltage, low power consumption, and support for different I 2C addresses.
Products List
| Part No. | PD2.0 | PD3.0 | VDD Range | CC1/CC2 Max Voltage | VBUS Max Voltage | Standby Power Loss | Dead Battery | Power Role Swap | Ambient Temperature | Package | |
|---|---|---|---|---|---|---|---|---|---|---|---|

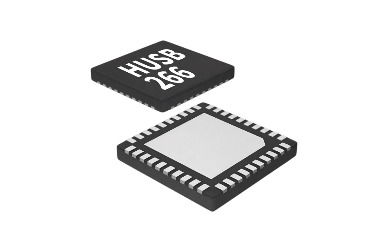

| HUSB266 | √ | √（PD3.1) | 3.3V-22V | CC1_A/CC2_A: 24V; CC1_B/CC2_B: 30V | 30V | 2mA | √ | √ | −40 °C ~ 85 °C | QFN5x5-40L |  |
| HUSB280A | √ | √（PD3.1) | 3.15V-23V | 30V | 30V | 1mA | √ | √ | −40 °C ~ 85 °C | QFN5x5-37L | |
| HUSB280 | √ | √（PD3.1) | 3.15V~23V | 30V | 30V | 1.5mA | √ | √ | −40 °C ~ 85 °C | QFN5x5-37L | |
| HUSB252 | √ | √（PD3.1) | 3.5V | 25V | 30V | 200uA | √ | √ | −40 °C ~ 85 °C | QFN4x4-24L | |
| HUSB239 | √ | √（PD3.1) | 3V~5.5V | 32V | 32V | IVDD 50 uA | √ | √ | −40 °C ~ 85 °C | QFN3x3-16L | |
| HUSB251 | √ | √（PD3.1) | 3.15V~29.4V | 30V | 35V | 1mA | √ | √ | −40 °C ~ 85 °C | QFN4x4-24L | |

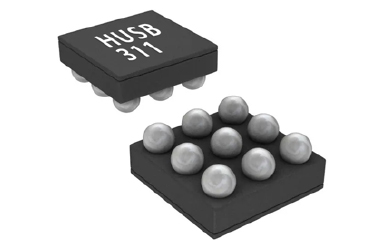

| HUSB311C | √ | √（PD3.1) | 3~5.5V | 24V | 30V | 33μA | √ | √ | −40 °C ~ 85 °C | WLCSP-9B | |
| HUSB311 | √ | √ | 2.8~5.5V | 24V | 30V | 33μA | √ | √ | -40°C ~ 85°C | WLCSP-9B, QFN2.5x2.5-14L | |
