The most popular USB eMarker products
The USB eMarker chips launched by Hynetek have all passed the USB-IF certification. There are many advantages such as high reliability, high voltage resistance, simple pin, small size, strong compatibility and rich packaging types, wildly accepted by customers.
Products List
| Part No. | PD3.0 | Type-C Specs | Write Times | Program Methods | ESD | Power Supply | External Capacitors | Max Voltage Rating | Advanced Features | Package | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| HUSB332G | √(PD3.2) | / | / | / | HBM: ±6KV | 4.25 V ~ 50 V | 0 | 55V | 55V high withstand voltage, ultra-low standby power consumption | DFN1.6x1.6-4L |  |
| HUSB332F | √ | NA | 0 | CC | HBM±6 kV | 4.25 V ~ 40 V | 0 | 44V | Ultra-Low Power Consumption, Provide customers with higher production efficiency and lower production costs | SOT23-3L | |
| HUSB332E | √（PD3.1) | V2.2 | 3 times | CC | ±5 kV | 2.7 V ~ 5.75 V | 0 | 60 V | USB4 and TBT4 | DFN2X2-6L、DFN1.6X1.6-4L | |
| HUSB335 | - | - | 2 times | D+D- | ±8 kV | 3V~5.5V | 1 | 6.5V | UFCS 1.0 Protocol Compliant | 1.6 mmx1.6 mm DFN-6L | |
| HUSB332D | √（PD3.1) | V2.2 | 3 times | CC | ±8 kV | 2.7 V ~ 5.75 V | 0 | 25 V | USB4 and TBT4 | DFN2X2-6L、DFN1.6X1.6-4L | |
| HUSB332C | √（PD3.1） | V2.1 | 4 times | CC/I2C | ±5 kV | 2.7 V ~ 5.75 V | 0 | 35 V | USB4 and TBT4 | DFN2X2-6L | |
| HUSB332B | √(PD3.1) | V2.1 | 3 times | CC/I2C | 8kV | 2.7V-5.75V | 0 | 28V | USB4 and TBT3 22-Byte Manufacturer _Info | DFN2X2-6L WLCSP-6B | |
| HUSB331 | √ | V1.2 | >500 times | CC/I2C | 8kV | 3V-5.5V | 2 | 7V | - | 2X2 DFN-6L 0.65mm pitch | |

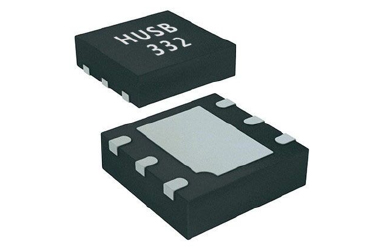

| HUSB332 | √ | V1.4 | >500 times | CC/I2C | 8kV | 2.7V-5.5V | 0 | 25V | - | 2X2 DFN-6L 0.65mm pitch 2X3 DFN-8L 0.5mm pitch WLCSP-6B 0.4mm pitch | |

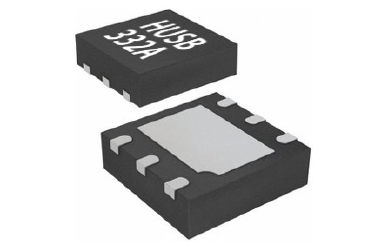

| HUSB332A | √ | V1.4 | 2 times or 5 times | CC/I2C | 8kV | 2.7V-5.5V | 0 | 25V | USB4 and TBT3 22-Byte Manufacturer _Info | 2X2 DFN-6L 0.65mm pitch 2X2 DFN-8L 0.5mm pitch 2X3 DFN-8L 0.5mm pitch WLCSP-6B 0.4mm pitch | |
