HUSB332C Expand all
Product Descriptions

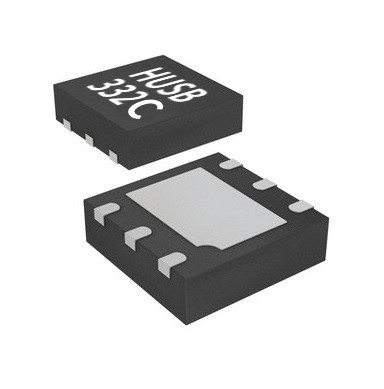

HUSB332C is a USB Type-C eMarker for Cable ID applications. It is compliant with USB Type-C Specification Revision 2.1. It is also compliant to USB Power Delivery 3.1 and USB4™ Specification. Powered from VCONN1 or VCONN2, HUSB332C can determine to act as SOP’. The built-in OTP can be programmed through CC line or I2C bus so that it will be flexible for in-system programming. The enhanced system ESD protection on the exposed pins can improve the system reliability significantly. The HUSB332C operates over a wide supply range of 2.7 V to 5.75 V. It is available in DFN2×2-6L package. It is rated over the -40°C to +85°C temperature range.


Typical Application Circuit
Sample and Order
Order ModelDescriptionsPackageTemperature RangeShipping
HUSB332C_U40DADefault USB4 Gen 3, ERP Mode Capable, 1m cableDFN2X2-6L -40°C - 85°CTape & Reel, 4kApply Now


Product Features
  • USB Type-C 2.1 and USB PD 3.1 Compliant,TID:8655

    • Support SOP’ Communication

    • Integrated Transceiver (BMC PHY)

    • Support Both Structured VDM Version 1.0 and 2.0

  • High Integration

    • Embedded Both Side Ra Resistors

    • Embedded Both Side VCONN Diodes

  • Package:

    • DFN2×2-6L

  • Support 4 Times Programming

  • Compatible with CC Wire Programming Tools

  • Support 2.7 V ~ 5.75 V operation on VCONN1 and VCONN2 Pins

  • 35 V High Voltage Tolerance on CC, VCONN1 and VCONN2 Pins

  • Support Thunderbolt 3 and Thunderbolt 4 Data Communication

  • Encryption Commands Supported for Vendor Identification


Technical Documents
Typical Applications



USB Type-C cable
