HUSB801【Integrated Buck Controller】 Expand all
Product Descriptions

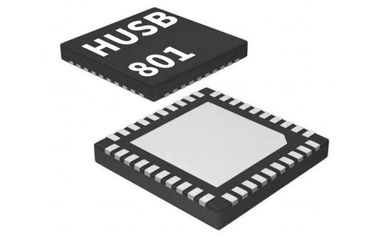

The HUSB801 is a buck controller and supports USB Type-C and USB Type-A Dual-Port. When there is only one port attached, the fast charging protocols, USB PD or HVDCP, are enabled, it is only 5 V output when both ports are attached simultaneously. The HUSB801 is a USB PD3.1 controller which supporting 5 FPDOs and 2 APDOs with programmable current and voltage. Besides. The HUSB801 also supports BC1.2 DCP, Apple 2.4A, QC2.0/3.0/QC3+, AFC, FCP and SCP, PE1.1+ protocols. The HUSB801 integrates Chip-Link technology, which can be applied in a 4-port application. The HUSB801 integrates all of required protections such as Over Voltage Protection (OVP), Under Voltage Protection (UVP), Under Voltage Lockout (UVLO), Over Current Protection (OCP), Fast Over Current Protection (FOCP), CC or DPDM Over Voltage Protection (Port OVP) and Thermal Shut Down (TSD). It is QFN-40L (5 mm x 5 mm) package.

Typical Application Circuit
Sample and Order
ModelTTemp (°C)Package TypePackage Option
HUSB801-AA000-QN40R-40 ~125QFN 40L, 5 mm×5 mmTape & Reel,5000Apply Now

Product Features
  • Integrated synchronous Buck controller

    • Wide input voltage range of 3.0 V to 32 V

    •  Adjustable Switching Frequency using resistor

    • Integrated 2 A MOSFET Gate Drivers

    • Support Output Short Protection , Cycle-by-Cycle Peak Current Limit, thermal shutdown, input UVLO, output OVP etc.

  • USB type-C 2.1 and USB PD3.1 compliant

    •  Support 5 V, 9 V, 12 V, 15 V and 20 V FPDOs

    • Support 2 programmable APDOs

  • Support BC1.2 DCP and HVDCP protocols

    • BC 1.2 DCP mode

    • Apple 5V 2.4A mode

    • QC2.0/3.0/QC3.0+ class A or class B


    • PE 1.1+

  • Chip-Link to extend 4-port application

  • As low as 5 mA light load detection

  • External N-MOSFET supported

  • Support constant voltage loop(CV) and constant current loop(CC) operation

  • Multiple cable compensation options

  • Integrated OVP, UVP, UVLO, OCP, FOCP, CC/DPDM OVP, TSD and OTP protections

  • QFN-40L (5 mm x 5 mm) package

Technical Documents
Typical Applications


Power Adapter


Car Charger

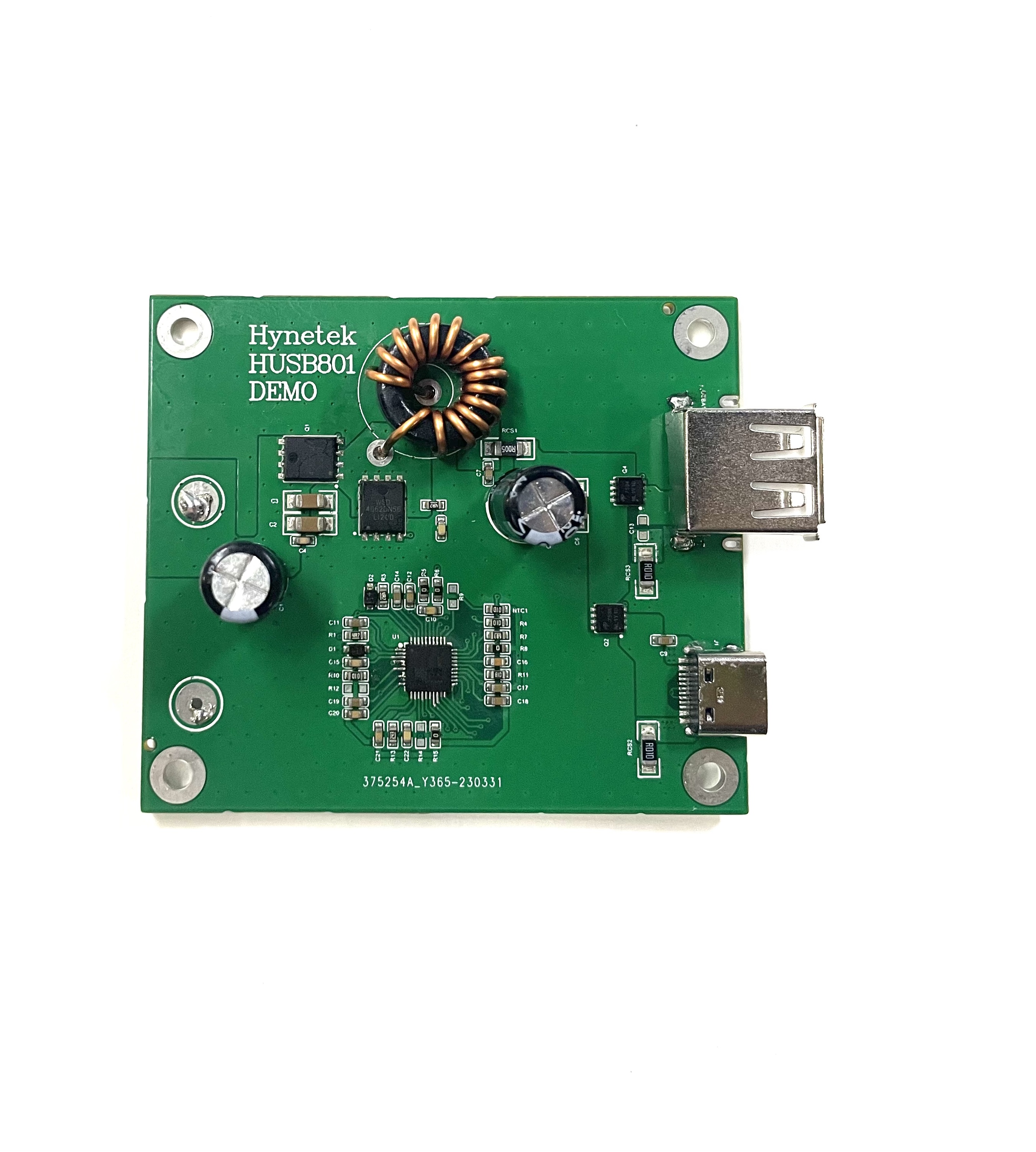

Evaluation Board Kit
