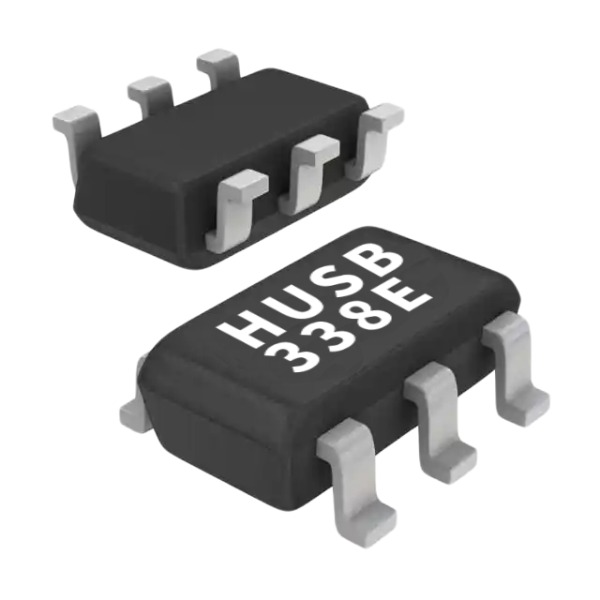

Product Descriptions

The HUSB338E is designed for a USB Type-C PD  product. It can support 3 FPDOs and 2 APDOs.  The PDOs can be configured by PS pin, a resistor is  connected between PS and GND pins. Also the PS pin  can be configured to output 2.7 V, and connect with  D+/D- to support Apple 2.4 A. The HUSB338E integrates protections such as VBUS  Over Voltage Protection (OVP), Under Voltage Lock Out  (UVLO), and Thermal Shutdown Protection (TSD). The package is SOT23-6L.

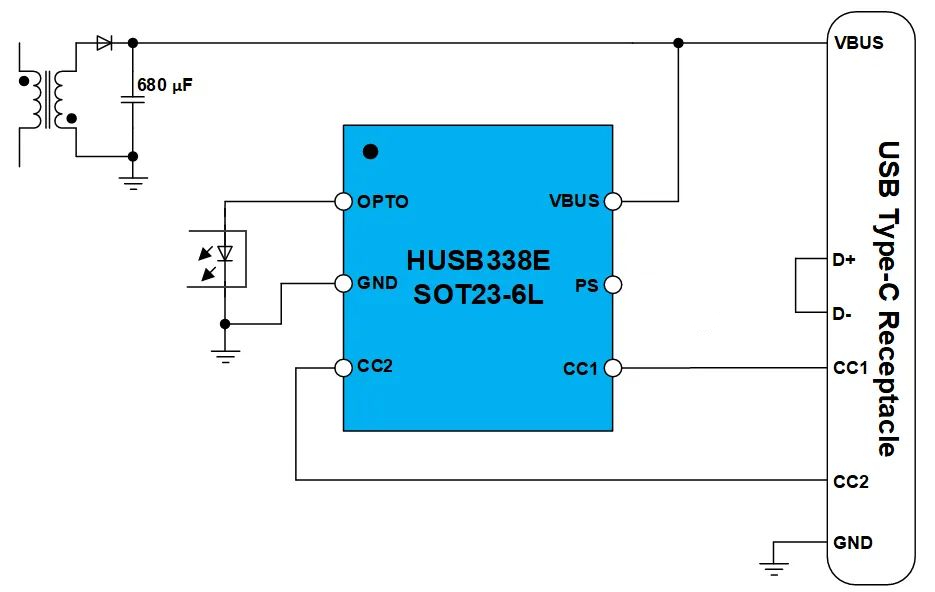

Typical Application Circuit
Sample and Order
ModelTTemp (°C)Package TypePackage Option
HUSB338E-BA001-ST06R-40 ~125SOP23-6LTape & Reel,3000Apply Now


Product Features
  • USB Type-C and PD Source

   - Support 5 V, 9 V and 12 V FPDOs

   - Support 5 V and 9 V Prog APDOs

  • Multiple Power Levels available by PS pin

   - Floating: 20 W(With PPS)

   - Connected to GND: 25 W(Without 12 V)

   - Connected to GND via a resistor:  20 W(Without PPS)/25 W(With 12 V)

  • PS pin can be configured to output 2.7 V to support  Apple 2.4 A

  • Integrated with OVP, TSD

  • ±2 kV HBM ESD Rating for USB IO pins

Technical Documents
Typical Applications

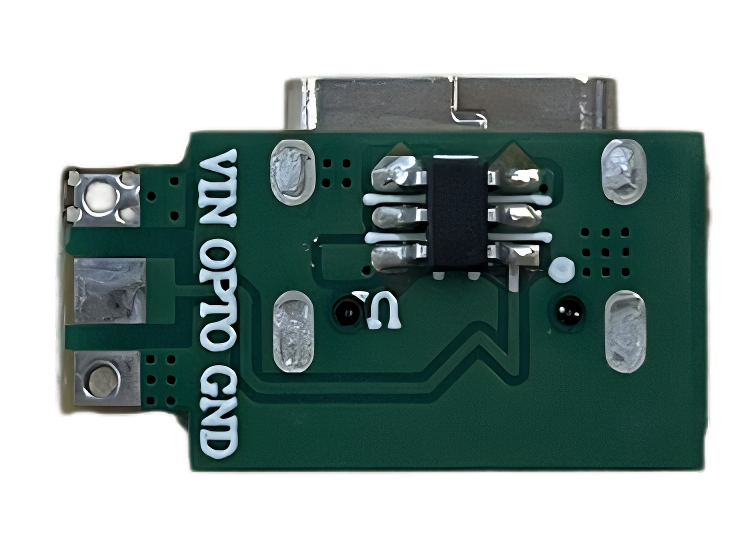

Evaluation Board Kit
