The HUSB383C is a high performance, high integration 2C controller. When a single port is attached, the controller enables fast charging protocols such as USB PD. However, when 2 ports are connected simultaneously, it provides only a 5V output. The HUSB383C is a USB PD 3.1 source controller that supports 3 FPDOs and 2 APDOs with programmable current and voltage. The HUSB383C integrates all of essential protections,including Over Voltage Protection (OVP), Under Voltage Protection (UVP), Under Voltage Lockout (UVLO), and Thermal Shut Down (TSD).It is available in eSOP-8L package.
USB Type-C 2.1 and USB PD 3.1 Compliant
– Support 5 V, 9 V and 12 V FPDOs
– Support 2 Programmable APDOs
Integrated N-MOSFET with Softstart
Constant Voltage Control with Internal Compensation
Support Single Port Fast Charging Mode and 5V Sharing Mode for Multiple Port Mode
Automatic Sleep Mode for Cable Connection and Wake for Device Connection
Integrated OVP, UVP and TSD protections

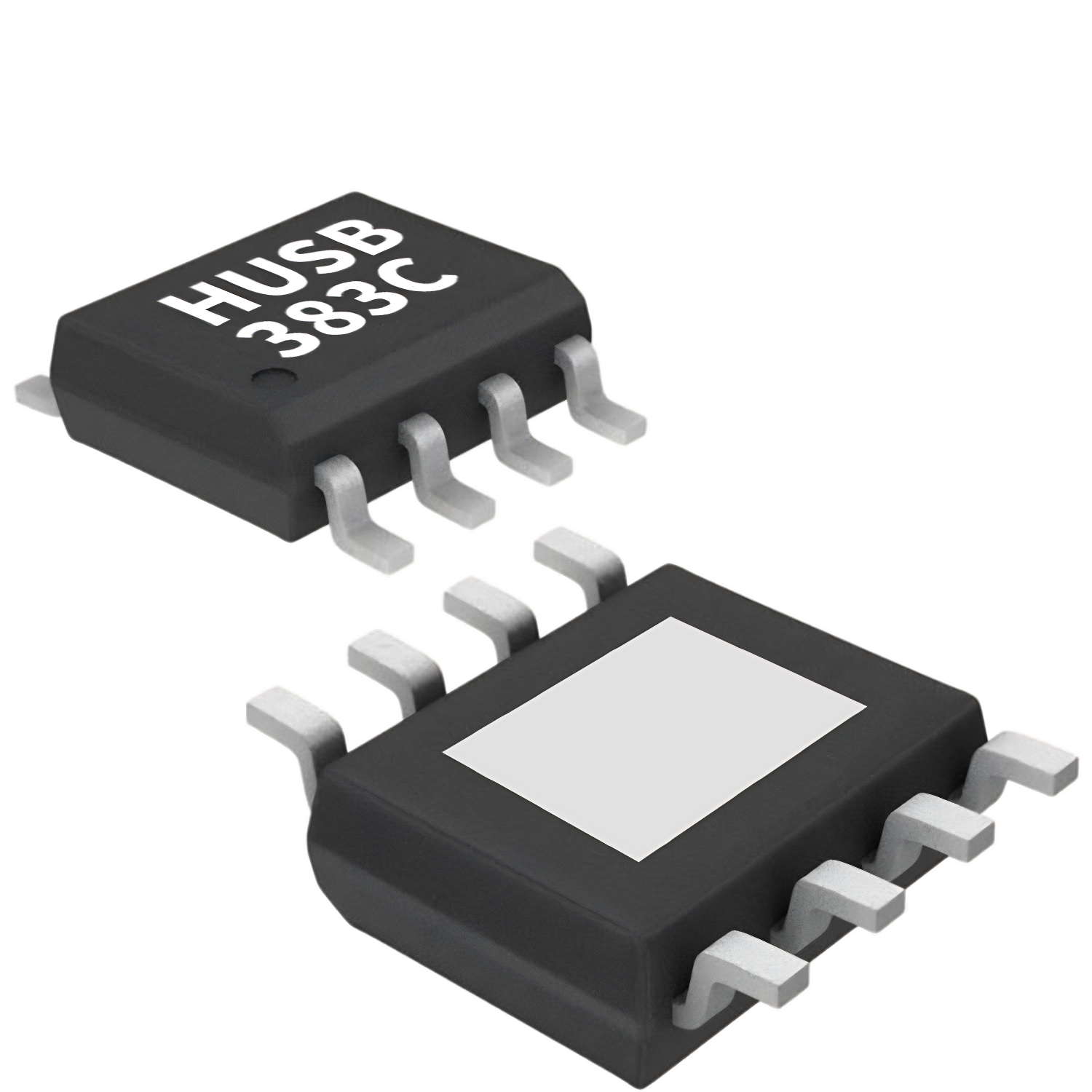

ESOP-8L Package
±5 kV HBM ESD Rating for USB IO Pins
