USB Type-C 2.1 and USB PD 3.1 Compliant
– Support 5 V, 9 V, 12 V, 15 V, 20 V
– Support 2 Programmable APDOs
– Compliance Certification, TID: 10190
Support BC1.2 DCP and HVDCP Protocols
– BC 1.2 DCP Mode
– Apple 5 V 2.4 A Mode
– QC2.0/3.0/QC3.0+ Class A or Class B
– AFC, FCP and SCP
– PE 1.1+/2.0
Integrated N-MOSFET with Softstart
Integrated Current Shunt
Constant Voltage and Constant Current Control with Internal Compensation
Multiple Cable Compensation Options
Integrated OVP, UVP, UVLO, OCP, FOCP and TSD Protections

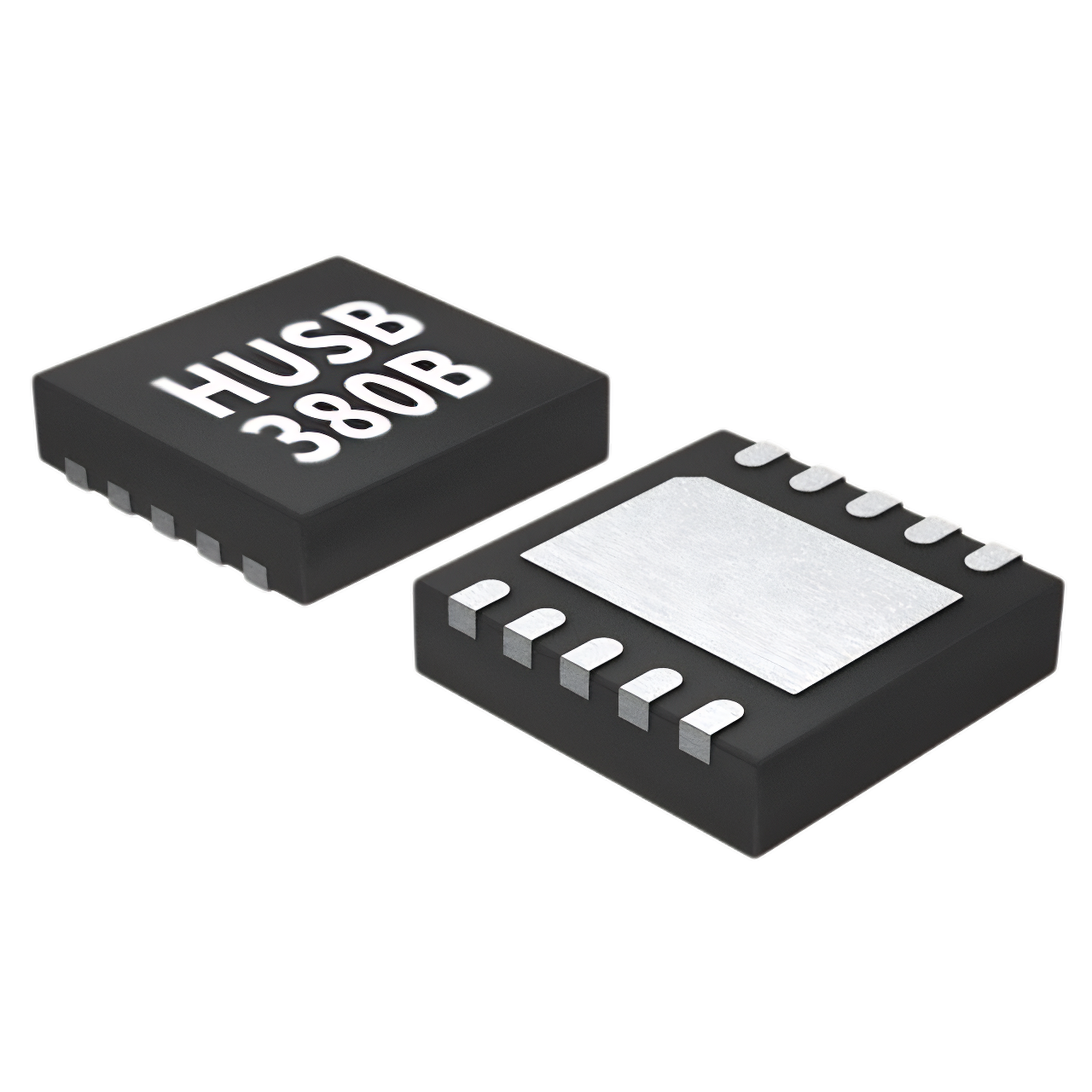

DFN3X3-10L and SOP-8L Package
±5kV HBM ESD Rating for USB IO Pins
