USB Type-C 2.4and USB Power Delivery(USB PD) 3.2 Compliant
– Supports USB PD SPR Mode with PPS (5 V to 21 V) and AVS (9 V to 20 V)
– Supports USB PD EPR Mode with AVS (15 V to 48 V)
Integrated VCONN Power for eMarker Detection
Integrated N-MOSFET Driver with Soft-Start
Multiple DPDM Charging Protocols Implemented
– BC1.2 DCP modeand Apple 5V/2.4A
– QC2.0, QC3.0,and QC3+
– AFC, FCP, SCP, and UFCS
Integrated 11bit ADC
Integrated MCU with 2 kBSRAM and32 kB MTP Memory
Supports LimitedPowerSource (LPS)
Maximum Voltage Rating Up to60V at VINand VBUS Pins
Programmable Fault Protections
– Over-Voltage Protection (OVP)
– Over-Current Protection (OCP)
– Fast Over-Current Protection(FOCP)
– Over-Temperature Protection (OTP)
– Under-Voltage Protection (UVP)
– Thermal Shut Down Protection(TSD)
– CC1/CC2 and D+/D-pins OverVoltage Protection
Programmable Constant Voltage and Constant Current Control
Programmable Sleep Mode to Save Power as Low as 2.5 mW when Attached
PackageOptions:
– QFN-24L,4 mm x 4 mm
– QFN-16L,4 mm x 4 mm
±2kV HBM ESD Rating for USB IO Pins
- HUSB368 Expand all
-
Product Descriptions

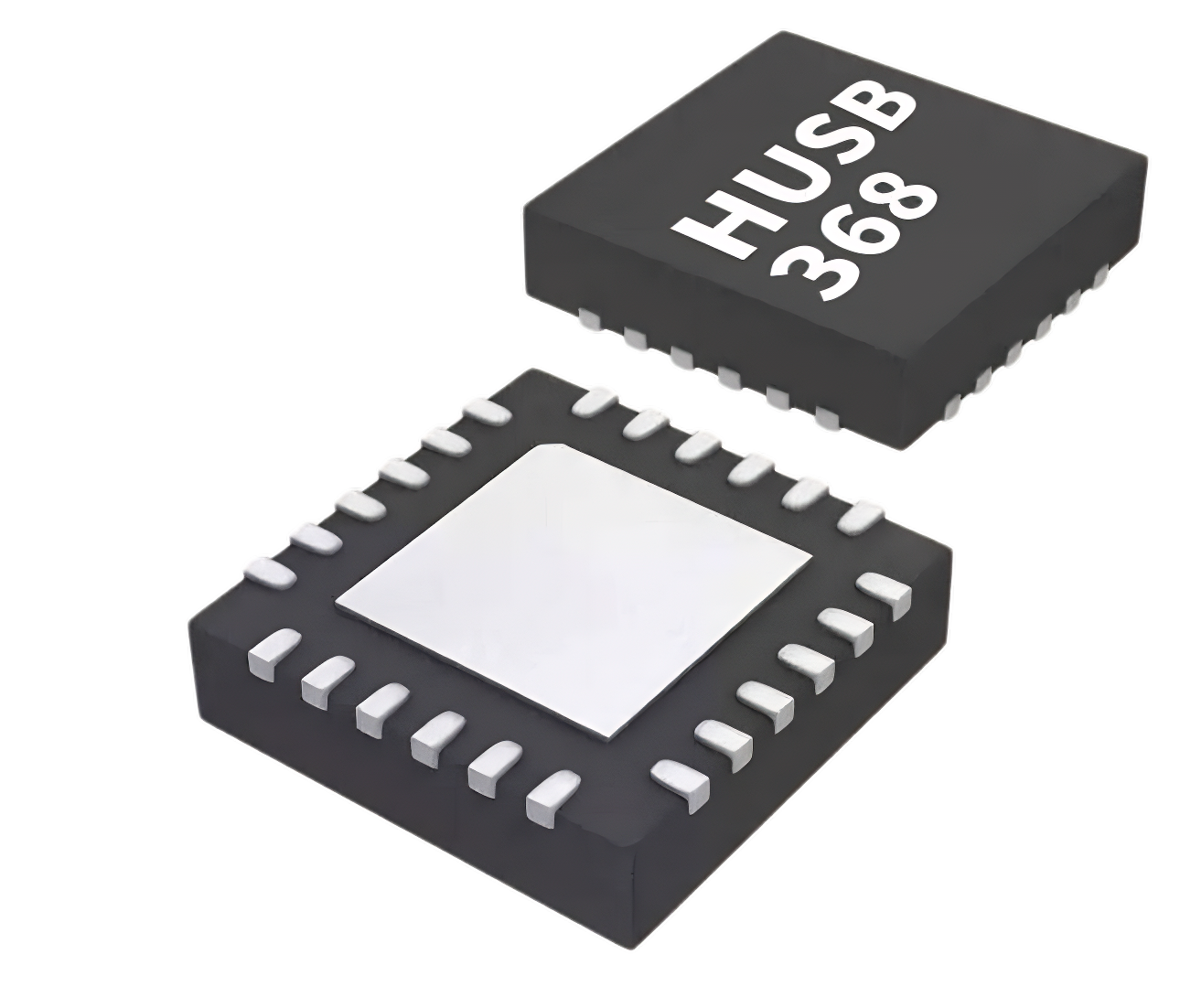

The HUSB368 is designed for use in SPR or EPR USB Type-C PD Source applications. It can support multiple PDOs with programmable voltage and current for different applications. All of the PDOs are fully compliant with the USB PD Specification Revision 3.2. Additionally, the HUSB368 is compatible with a range of charging protocols, including BC1.2 DCP, Apple 5V/2.4A, QC2.0, QC3.0, QC3+, AFC, FCP, SCP, and UFCS, providing excellent compatibility for the legacy devices. The HUSB368 integrates a GATE driver to enable the VBUS from VIN to protect the devices connected with USB Type-C connector. The high voltage tolerance and protections at CC1, CC2, D+ and D- pins provide more reliability for the system. It is available in 4 mm x 4 mm QFN-24Land 4 mm x 4 mm QFN-24L packages.
-

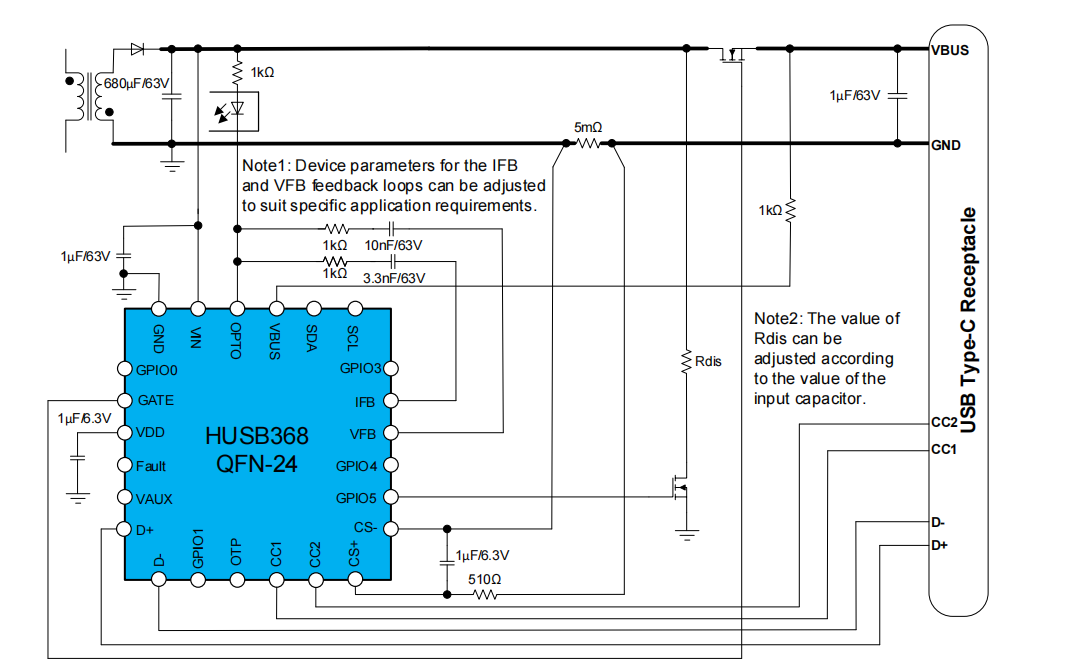

Typical Application Circuit
-
Sample and Order
-
Product Features
-
Technical Documents
-
Typical Applications
Adaptor
Car Charger
-
Evaluation Board Kit
