USB Type-C PD Source with PPS Supported
– Compliant with USB Type-C Specification Revision 2.4
– Compliant with USB PD Specification Revision 3.2
Integrated VCONN Power for eMarker Detection
Integrated High Voltage Driver for N-MOSFET
Multiple DPDM Charging Protocols Implemented
– BC1.2 DCP and Divider 3
– QC2.0/3.0/3+,AFC, FCP, SCP, UFCS
– PE1.1+/2.0
Multiple Hardware Cable Compensation Options
Programmable Constant Voltage and Constant Current Control
Fault Protections including Over Voltage Protection, Over Current Protection, Fast Over Current Protection, Over-Temperature Protection, Under Voltage Protection, CC Over Voltage Protection, Thermal Shut Down
Integrated MCU with MTPMemory
100μA Deep Sleep Mode Quiescent Current
Configurable I2C Slave/Master
Built-In 11-bit SAR ADC
±3000 V HBM ESD Rating for USBType-C Connector Pins
- HUSB363A Expand all
-
Product Descriptions

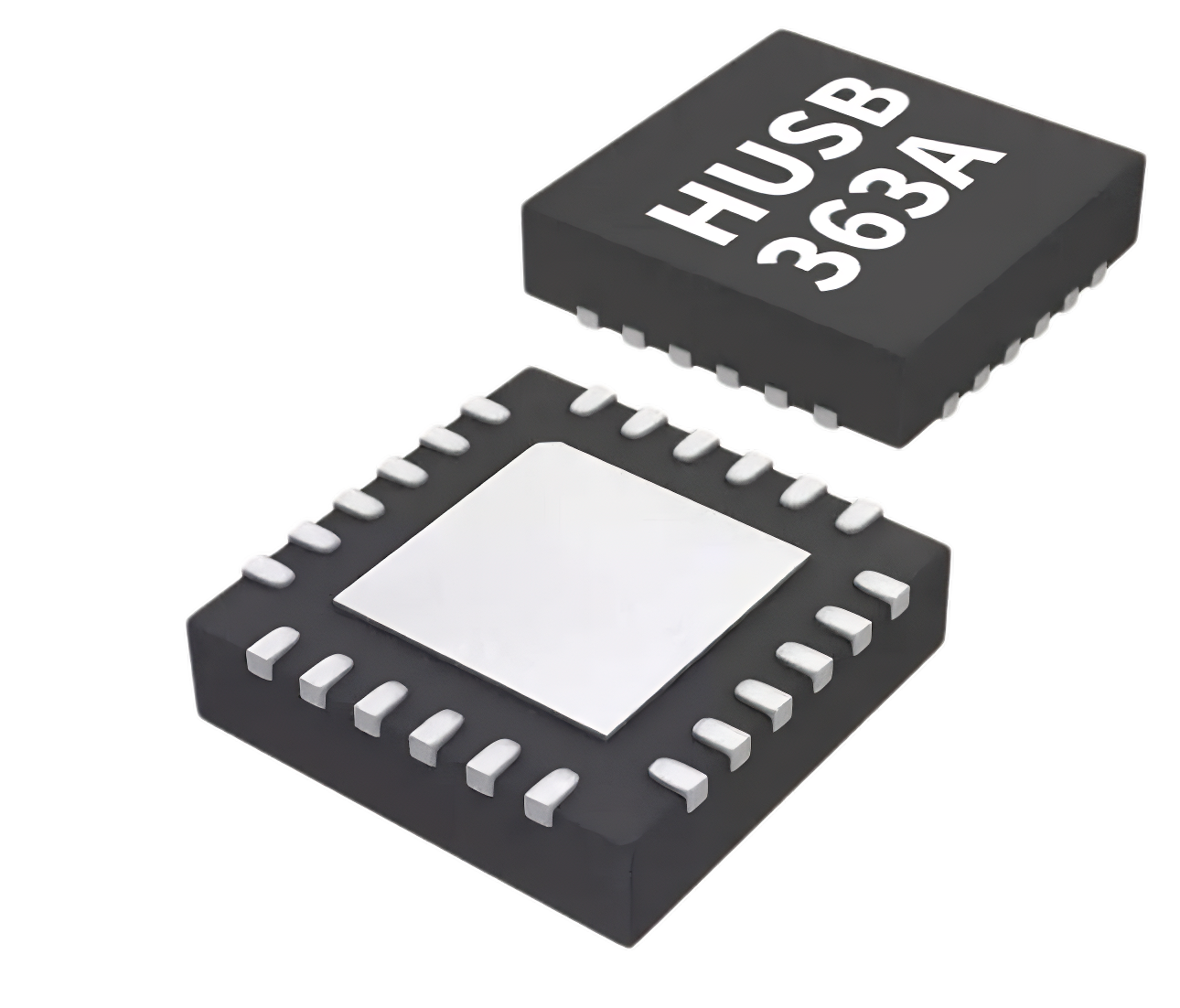

The HUSB363A is designed for a USB Type-C PD Source product. It can support multiple PDOs with programmable voltage and current for different applications, such as PPS PDOs. All PDOs are fully compliant with USB PD Specification Rev.3.2 Ver.1.1. Besides, the HUSB363A implements DPDM charging protocols. Both D+ and D- pins can be configured to support QC2.0/3.0/3+, AFC, FCP, SCP, UFCS and divider 3 mode which provide excellent compatibility for the legacy devices. The HUSB363Aintegrates a gate driver to control the power path from VIN to VBUS, protecting the devices connected with USB Type-C connector. It is available in QFN4x4-24L, QFN4x4-16L package.
-

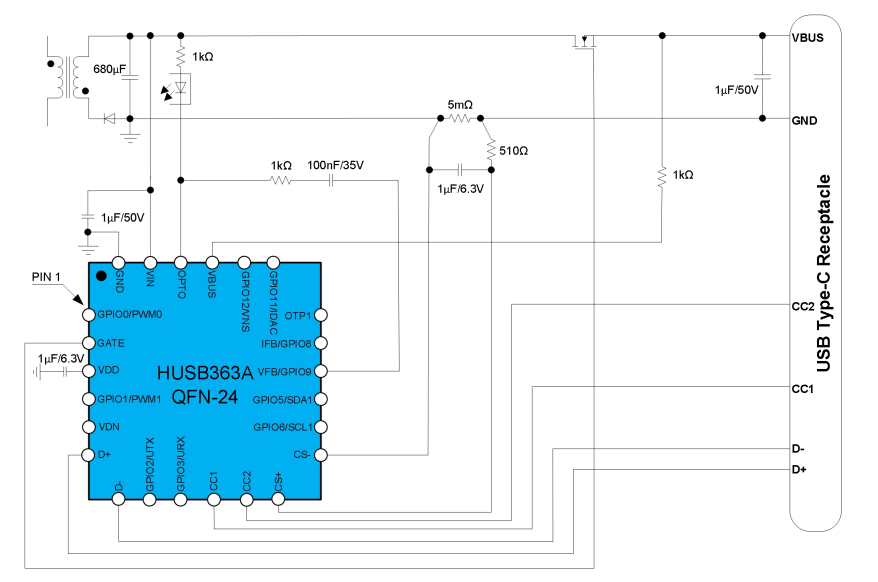

Typical Application Circuit
-
Sample and Order
-
Product Features
-
Technical Documents
-
Typical Applications
Adaptor
Car Charger
-

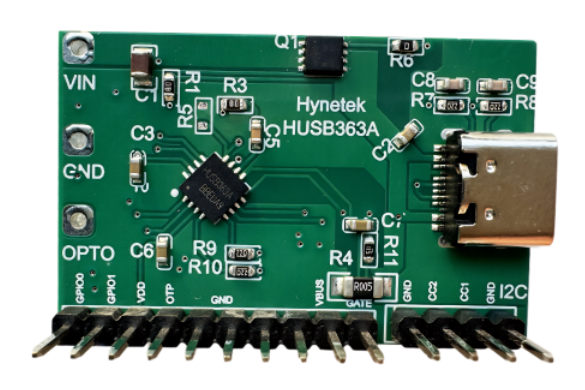

Evaluation Board Kit
